Home > Gabion Planter >

Modern Design Galfan Coated Welded Gabion Planting Box for Garden Landscape

Product Categories
Hebei KN Wire Mesh Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

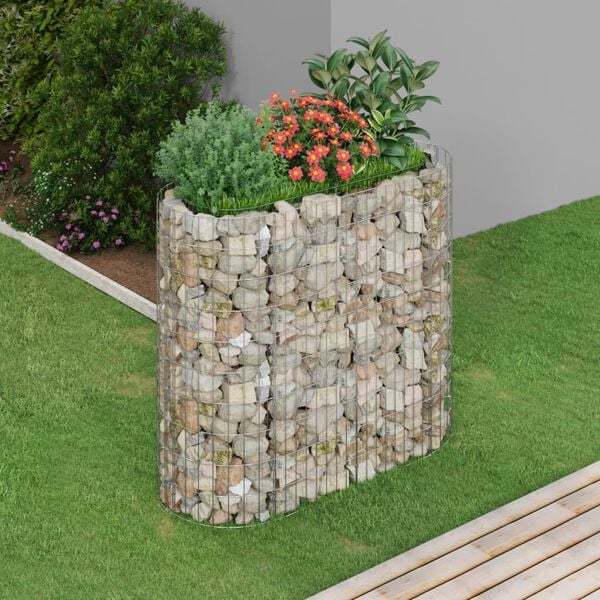

Modern Design Galfan Coated Welded Gabion Planting Box for Garden Landscape

  • 1
  • 2
  • 3

Brand Name : KN

Model Number : KNGP01

Certification : ISO, CE, COC

Place of Origin : Hengshui

MOQ : 1000

Price : USD 15-20

Payment Terms : T/T,Western Union,MoneyGram

Supply Ability : 500 sets per day

Delivery Time : 7 days

Packaging Details : pallet

Material : Hot dipped galvanized wire, Galfan coated steel wire, PVC coating steel wire

Mesh hole : 3 inch, 5*5, 10*10

Wire diameters : 3/4/5/6 mm

Gabion size : varies according to customers' requirements

Brand : KN

Daily Output : 500 sets

Package : Pallet

Sample : Free

Contact Now

Heavy Duty Galvanized Gabion wall Planting with 3-6 mm Wire Diameter and 50x50 mm Mesh for Garden Landscape
How to Use Gabion Walls
Retaining walls. The gabion was developed for practicality: to retain a slope, prevent erosion along a shoreline or fortify a military outpost. Landscape architects and designers are now finding new ways to maximize not only its functionality in the landscape but also its ability to make an aesthetic impact.

This gabion wall serves as a decorative retaining wall in a Seattle front garden.
Modern Design Galfan Coated Welded Gabion Planting Box for Garden Landscape
Gabions are metal cages or boxes filled with rocks or other usually earthen materials, often used as retaining walls or other outdoor walls. The cages are most commonly made of stainless, galvanized or powder-coated steel mesh panels, wired together using spiral binders or ring fasteners in the shape of a rectangle. Due to a gabion’s weight, frictional strength and ability to conform to the ground’s contours, it doesn’t require a foundation. Gabions are considered a cost-effective landscape feature. The steel cages are most commonly made of welded 3-inch mesh and cost about $15 to $20 per cubic yard. The fill is where costs can fluctuate greatly. If recycled concrete from the site is used, the cost can be quite inexpensive. If decorative glass bottles or slate, for example, are used, the price would be much higher.
Pros:
  • Ease of installation. Due to its ability to conform to the ground’s contours once filled, a gabion wall can yield to changes in soil conditions or earth movement, making a foundation unnecessary. Site preparation is minimal beyond clearing the ground of plants and debris and making sure the ground is level where the wall is to be placed.
  • Longevity. A major contributor to longevity is the gabion’s high permeability. Water can pass through the voids between the rock, eliminating the buildup of hydrostatic pressure and reducing the potential for shifting or warping over time. Also, the inherent strength of materials that won’t corrode over time makes gabion walls built to last.
  • Environmental and sustainable qualities. If recycled concrete or rock found onsite during construction is used, the amount of waste hauled to a landfill and the associated fuel costs are greatly reduced.
  • Aesthetic appeal. Gabions have the ability to contextually tie structures to their natural surroundings.
Material Specifications
Material Galvanized Steel Wire, Galfan Steel Wire/Zinc-5%Aluminum Wire
Wire Diameter 3 mm-6 mm
Aperture 50*50 mm, 50*100 mm etc
Gabion Box Size 100*30*30 cm, 100*50*30 cm, 100*100*50 cm, 100*100*100 cm etc.
Finish Hot Dipped Galvanized; Heavy Zinc Coating; Galfan Coating; PVC Coated.
Standard Dimensions
Normal Box Size(cm) Diaphragms Capacity (m3) Mesh Size(mm)
100x30x30 None 0.09 50×50 or 100×50
100x50x30 None 0.15
100x100x50 None 0.5
100x100x100 None 1
150x100x50 1 0.75
150x100x100 1 1.5
200x100x50 1 1
200x100x100 1 2
Other sizes can be customized.
Key Advantages
  • Easy Installation: Conforms to ground contours without needing foundations
  • Exceptional Longevity: High permeability prevents hydrostatic pressure buildup
  • Eco-Friendly: Can utilize recycled materials from construction sites
  • Aesthetic Flexibility: Blends naturally with surrounding environments
  • Cost Effective: Competitive pricing starting at $15-$20 per cubic meter
Technical Specifications
Fabric Type Galvanized welded mesh
Tensile Strength (wire) 540 to 770 N/mm²
Weld Strength 75% of minimum ultimate tensile strength
Available Wire Thicknesses 3.0mm, 4.0mm, 5.0mm
Mesh Aperture 75x75mm, 50x50mm, 50x100mm, 50x200mm
Standard Basket Lengths 1000mm, 1500mm, 2000mm, 500mm
Standard Basket Widths 450mm, 500mm, 300mm, 200mm, 1000mm, 1500mm
Standard Basket Heights 500mm, 1000mm
Custom sizes available upon request.
Product Gallery
Modern Design Galfan Coated Welded Gabion Planting Box for Garden Landscape



Modern Design Galfan Coated Welded Gabion Planting Box for Garden Landscape



Modern Design Galfan Coated Welded Gabion Planting Box for Garden Landscape



Modern Design Galfan Coated Welded Gabion Planting Box for Garden Landscape

Product Tags:

Heavy Duty Gabion Wall Planter



Garden Landscape Gabion Planter



Hot Dipped Galvanized Wire Gabion Planter


Quality Modern Design Galfan Coated Welded Gabion Planting Box for Garden Landscape for sale

Modern Design Galfan Coated Welded Gabion Planting Box for Garden Landscape Images
